Knee – ACL Tear

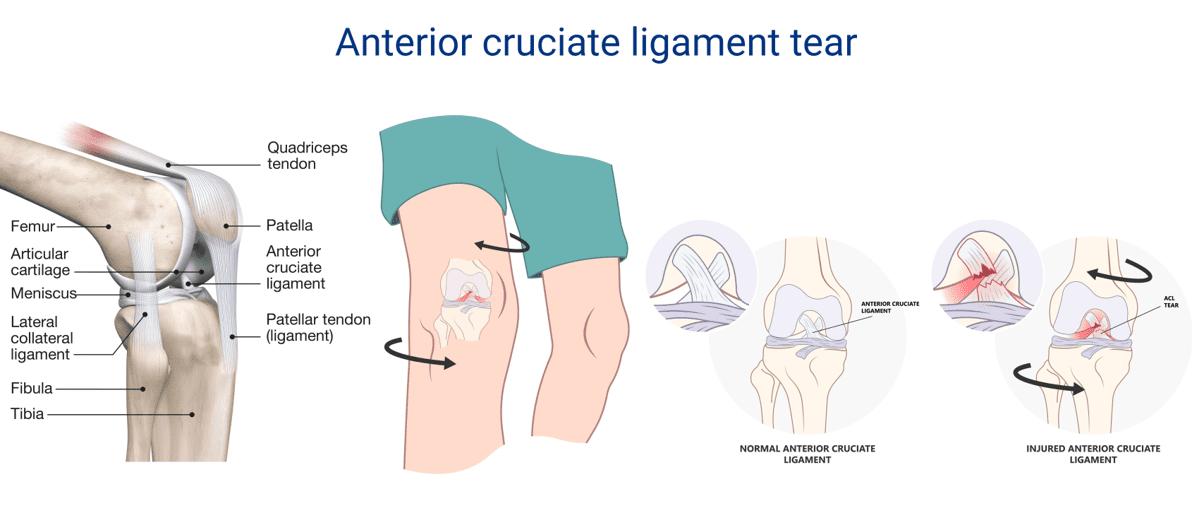

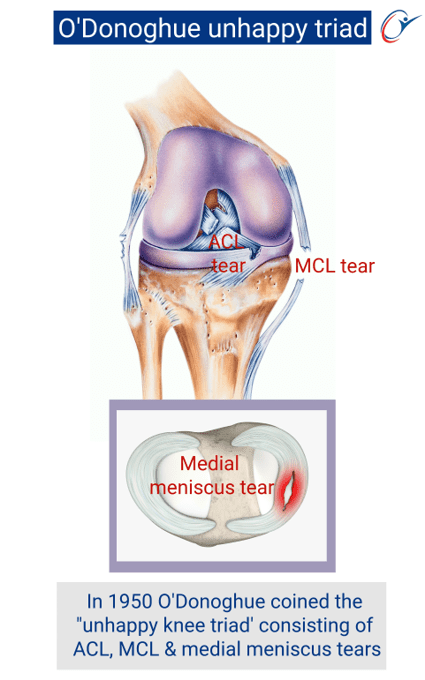

Anterior Cruciate Ligament Tears

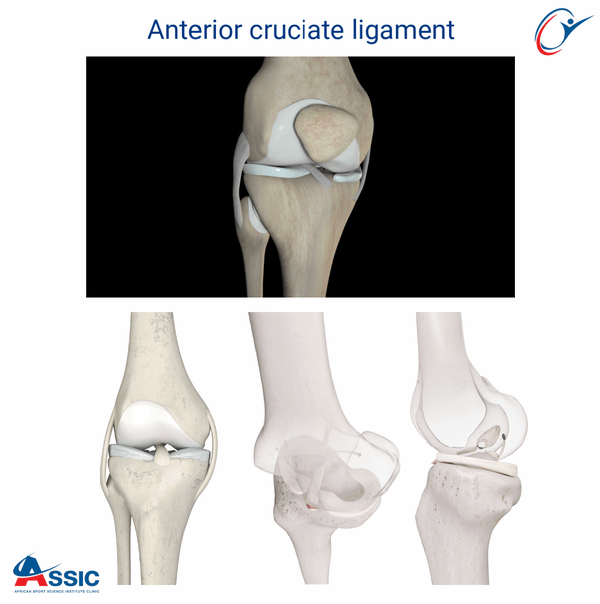

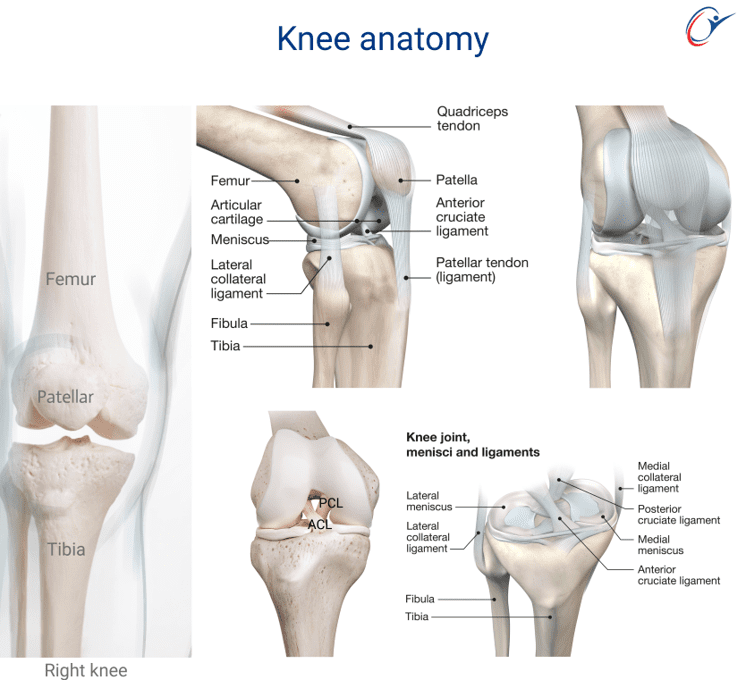

Anterior cruciate ligament

The ACL consists of 2 bundles, AM & PL bundles

  • The 2 ACL bundles are named according to their tibia attachment with the AM bundle inserting antero-medially and the PL bundle inserting posterolaterally.
  • On the femoral side, the AM bundle originates more proximally than does the PL bundle.
  • The AM bundle tightens in flexion while the PL bundle relaxes.
  • The PL bundle tightens in extension while the AM bundle relaxes.
  • AM and PL bundles have maximal shortening peak at 30° of knee flexion.
  • The AM bundle gives maximal rotation stability  at 60°-90° knee flexion.
  • The PL bundle gives maximal rotation stability  at 15°-20° knee flexion.

Examination

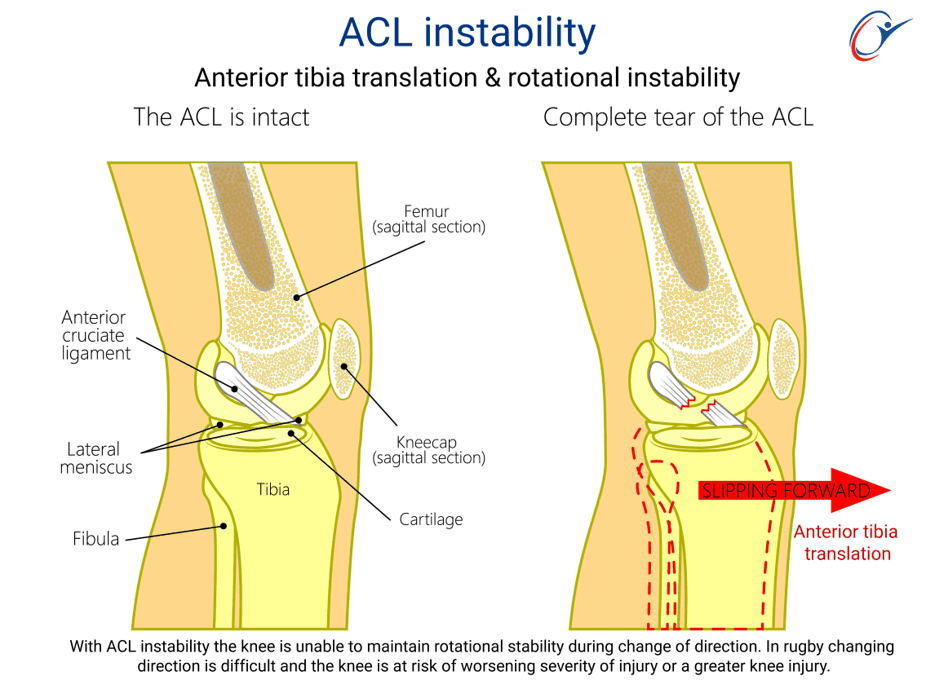

ACL instability tests:

  • Anterior drawer sign
  • Lachman test
  • Pivot test

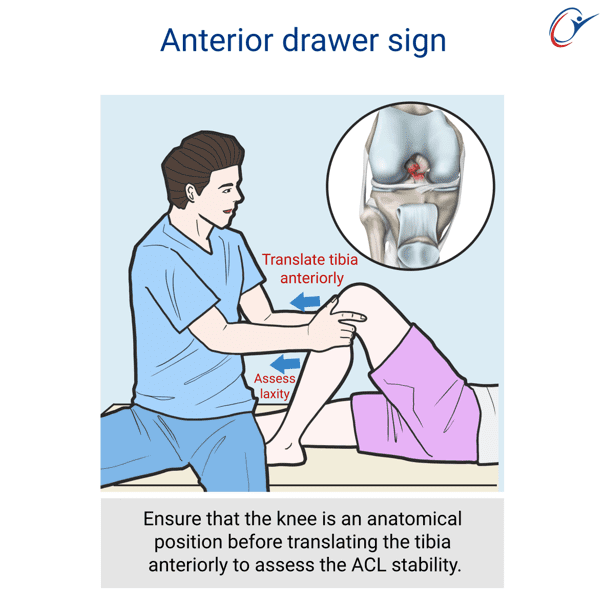

Drawer test

With tibia in anatomical position with knee flexion at 90 degrees, the tibia is translated anteriorly (Anterior drawer test) to assess for ACL instability and translated posteriorly (Posterior drawer test) to assess for PCL instability.

Video: Combined ACL & PCL instability. The knee is assessment & test performed from anatomical position for increased anterior & posterior tibia translation.

Lachman test

Hold patient’s leg with knee flexion to 30 degrees.
With knee flexion at 30 degrees, translate tibia anteriorly.
Positive test with anterior tibia translation



Pivot test

With leg extended internally rotate the tibia and apply a valgus knee force while flexing the knee joint. At 20-30 degrees of knee flexion the reducing lateral tibia plateau will produce clunk as it reduces to an anatomical position.



Investigations

Radiological investigations:

X-Ray:

  • X-Rays of the knee will exclude an ACL avulsion rupture.

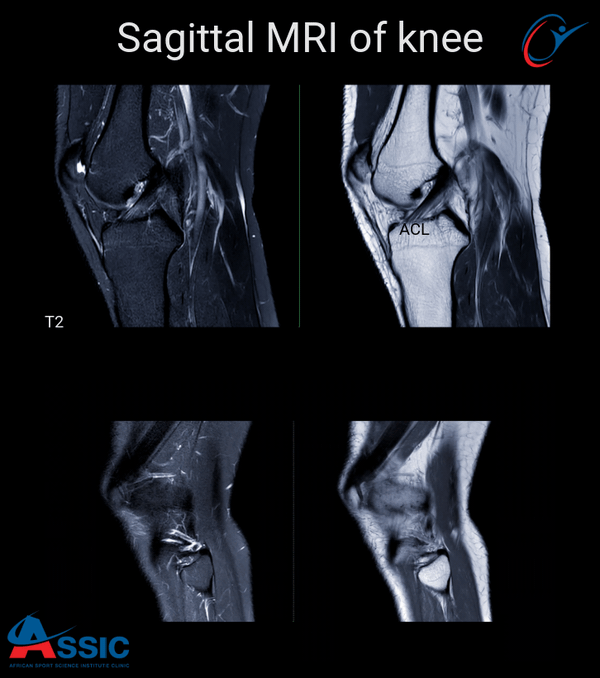

MRI scan:

  • MRI scan of the knee is the gold standard for knee soft tissue evaluation.



Management

ACL instability requires an arthroscopic ACL reconstruction operation using appropriate graft for the reconstruction.

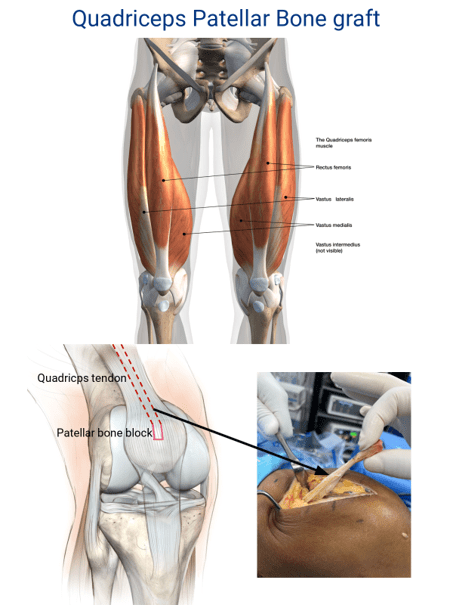

Quadriceps patellar bone graft for ACL reconstruction



Hamstring graft for ACL reconstruction



Overview of ACL reconstruction surgery principles

Video: ACL Reconstruction

Surgery Technique



Anterior cruciate ligament reconstruction

Anterior cruciate ligament reconstruction surgery principles include anatomical ACL reconstruction using allograft or autograft. Concomitant injuries are addressed simultaneously to ensure knee stability with a decreased risk of graft failure and also ensuring return to play at previous level of functioning.



ACL graft options

Graft options include autograft or allograft.
Autograft include:

  • Hamstring
  • Quadriceps patellar bone

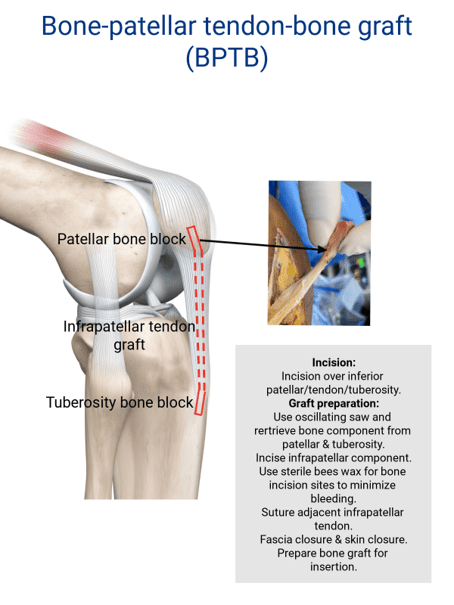

  • Bone patellar tendon bone

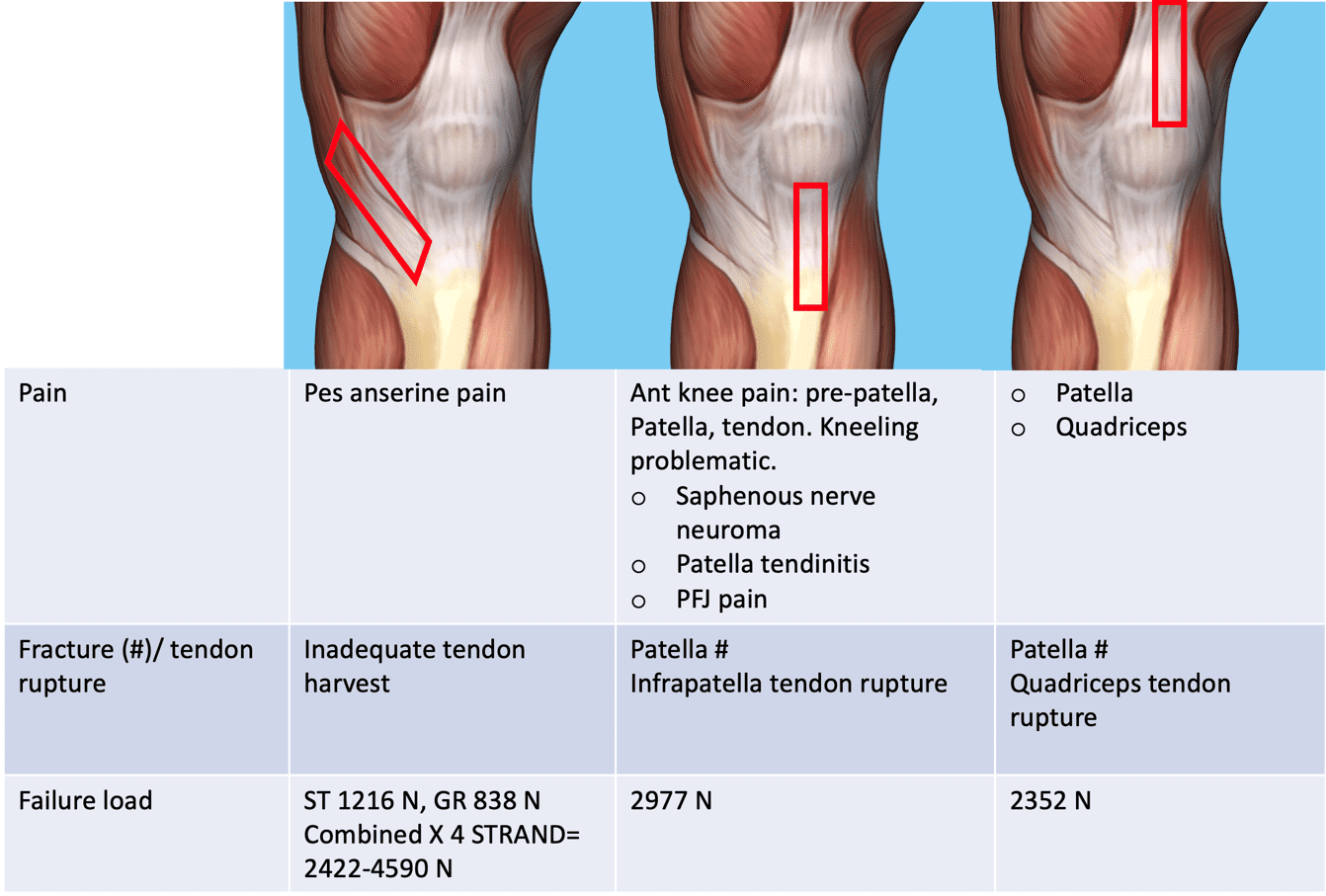

Graft complications



Graft preparation

Harvest autograft or use allograft.
Suture fixation of the graft ends.
Size graft to determine the drill size of the femur or tibia tunnels.

Suture Ends Of Graft

Size Graft To Determine Tunnel Diameter

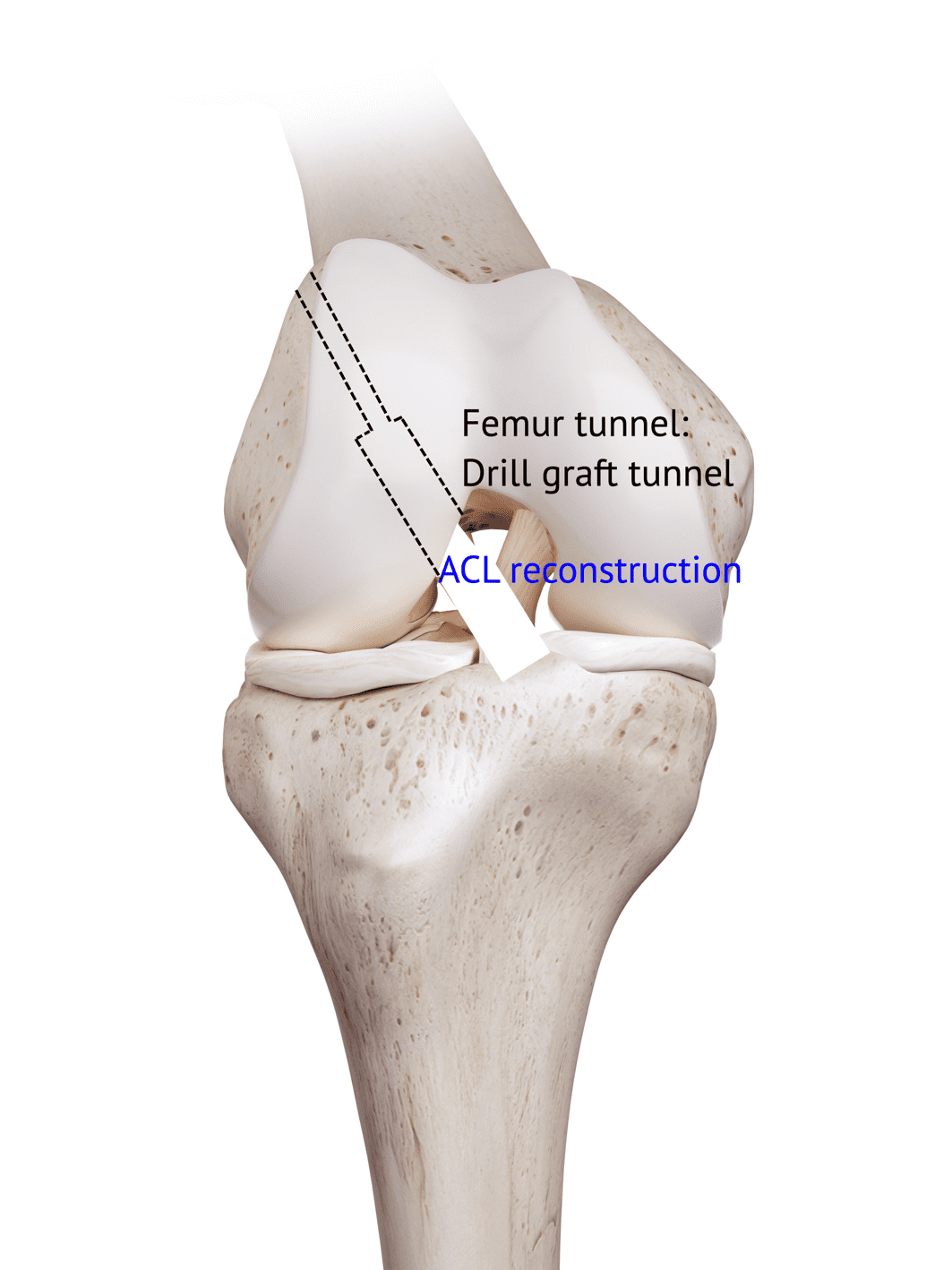

Preparation of femur tunnel

Arthroscopic view of femur ACL insertion site.
Drill the lead K-wire at femur insertion site.
Drill cannulated drill over the K-wire.
Size length of tunnel.

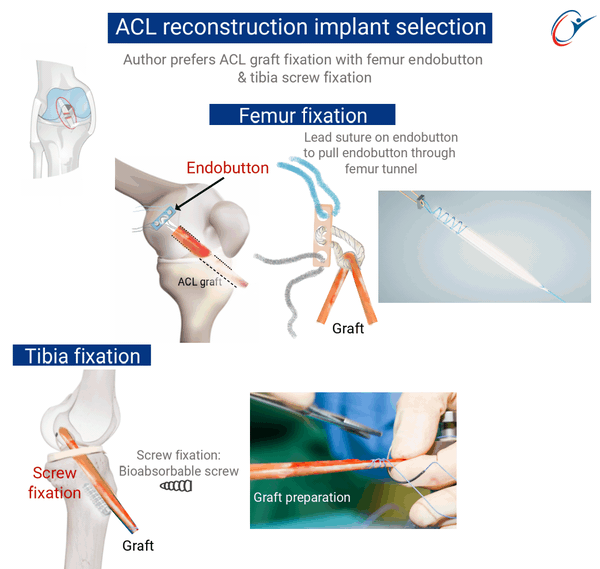

When using Smith & Nephew endobutton, the graft diameter tunnel length require an extra 10mm of drill length to allow flipping of the endobutton when the graft is passed through the femur tunnel.

Drill Wire Through ACL Femoral Attachment Site
Use Cannulated Drill Bit Drilling Over Wire
Measure Femur Tunnel Length

Drill Diameter Of Graft Size, Preferably 8mm Graft Diameter
Pull Loop Suture And Keep In Situ
Prepare Tibia Tunnel

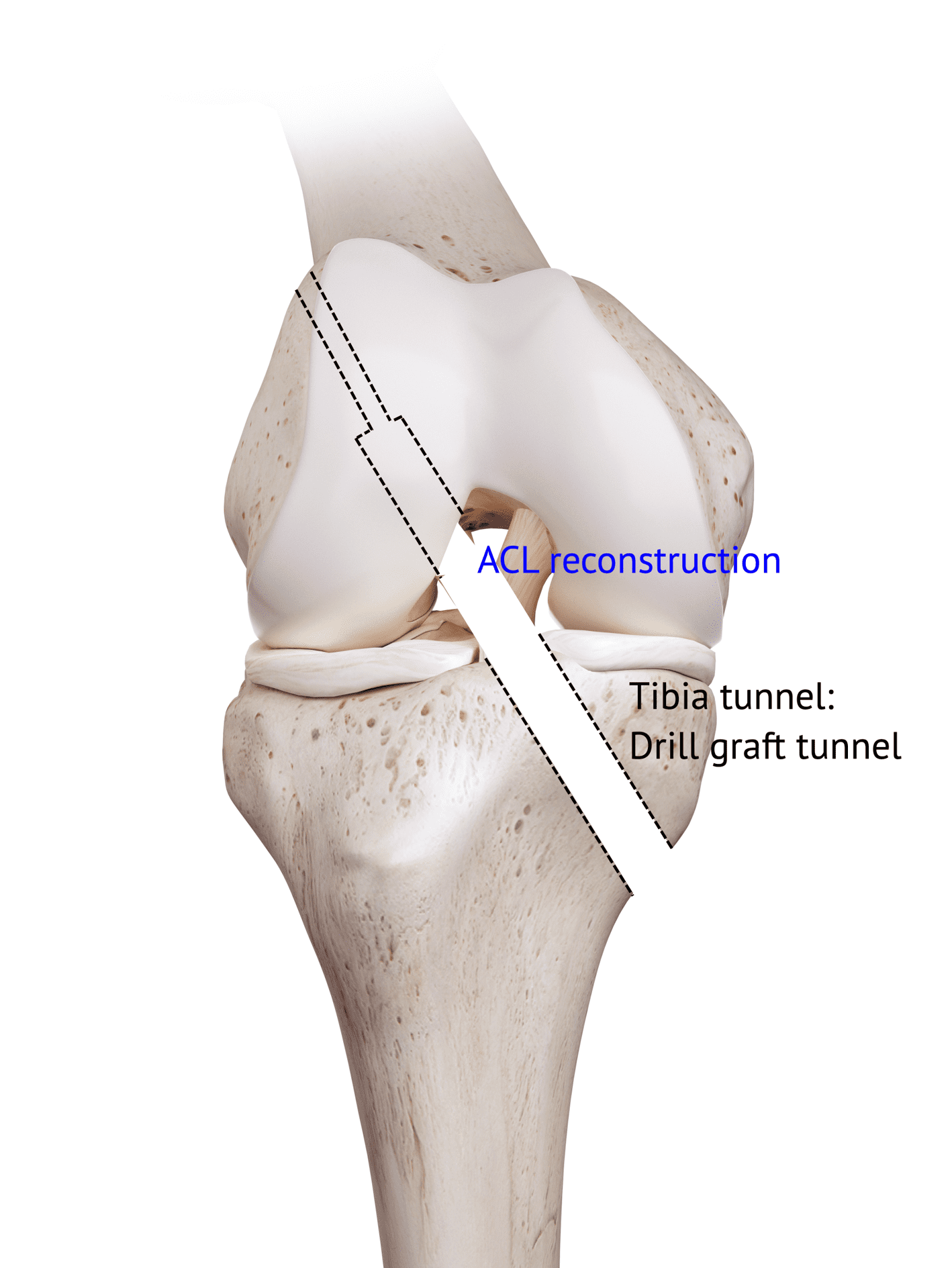

Preparation of tibia tunnel

Use tibia jig and drill the tibia tunnel.
Have appropriate tunnel length and angle of tunnel.



Drill Tibia Tunnel To Graft Diameter

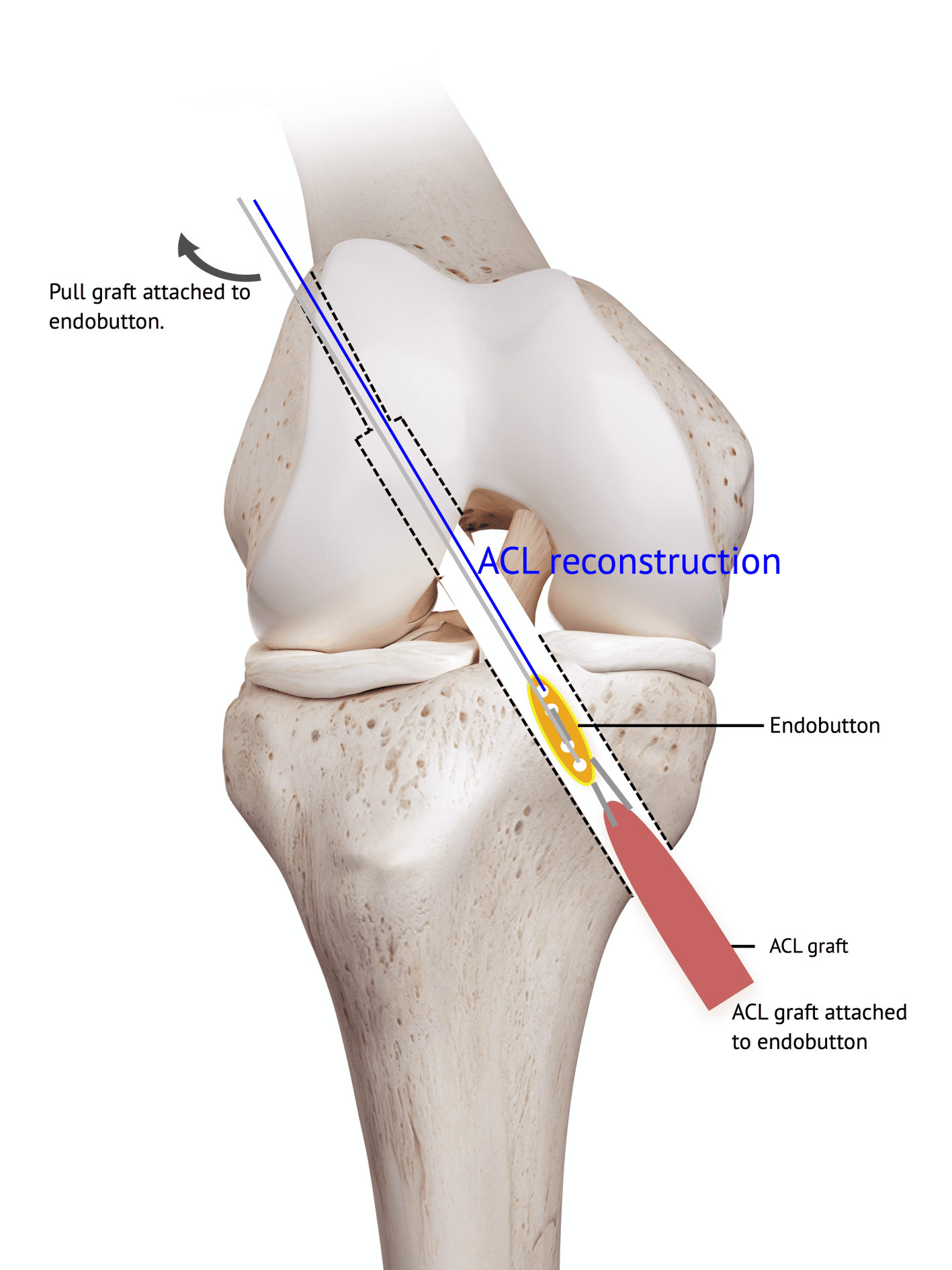

Passing of ACL graft through the prepared tunnels

Pull loop suture from femoral tunnel through tibia drill hole.
Pull the endobutton sutures (attached graft to endobutton) through the femur tunnel.
Flip endobutton and toggle to ensure flipped endobutton has flipped.

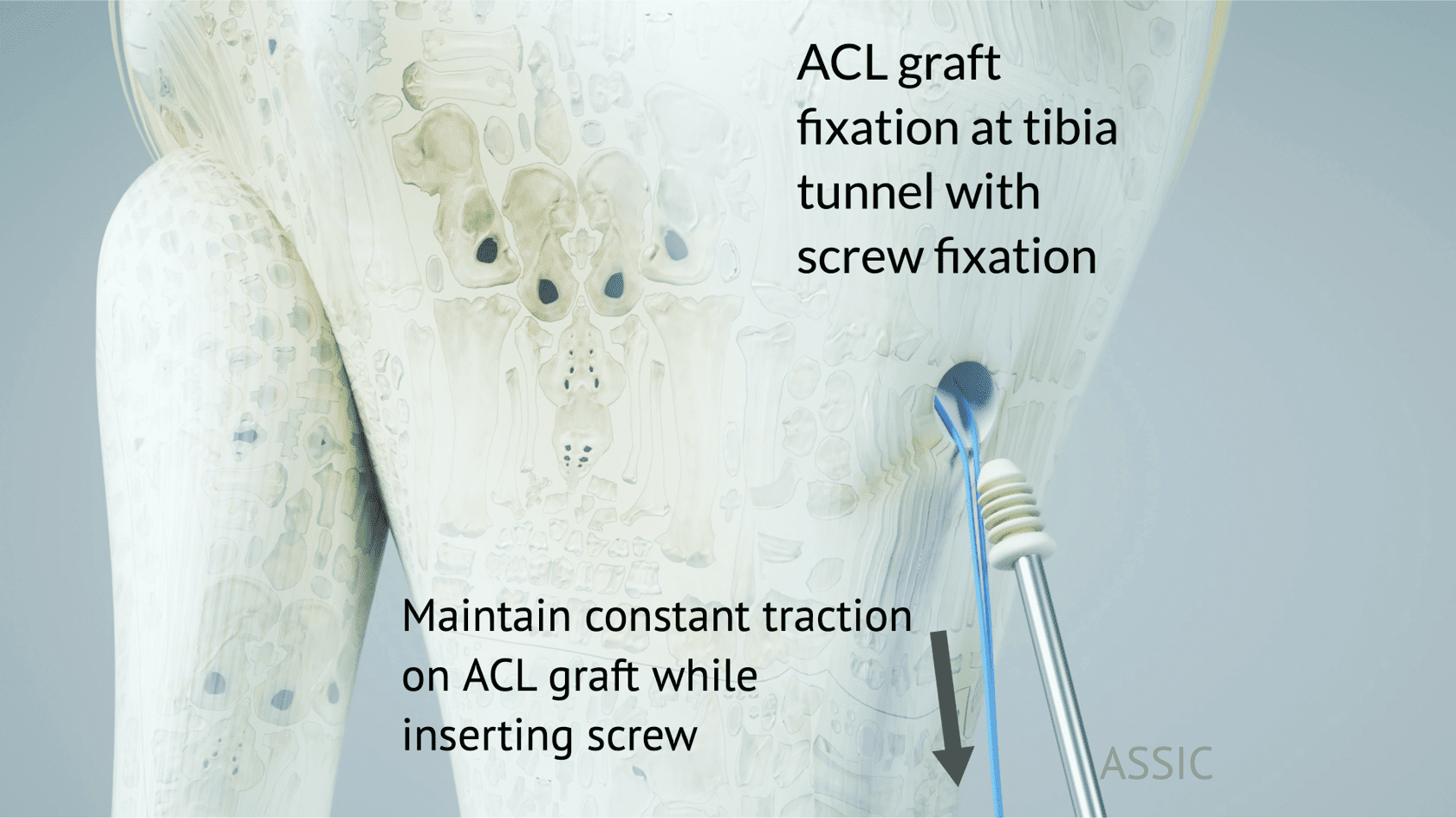

Fixation of graft to tibia

Pull graft at tibia end and apply inline traction to the graft while securing it with screw fixation.
ACL graft fixation at 30° knee flexion with screw fixation.



Tension ACL Graft And Insert Tibia Screw

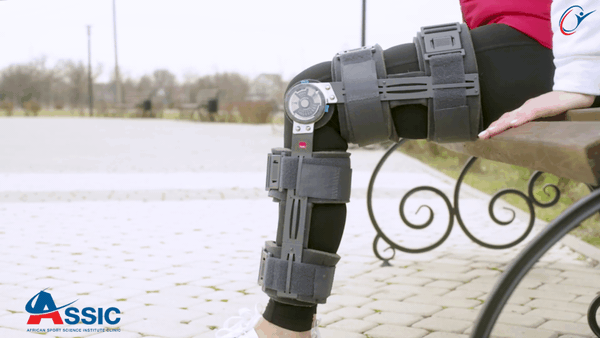

Knee bracing

Bracing is utilized in select cases where appropriately indicated:

  • Meniscus repair
  • Medial collateral ligament repair/reconstruction



Rehabilitation

Perform strengthening exercises and battery of performance testing before return to activity.
